MATMEK-4270
In lectures 11-12 we have considered steady equations like
\[ \mathcal{L}(u) = f \]
for a variety of operators \(\mathcal{L}\) and a numerical solution depending only on space \(u_N(\boldsymbol{x})\).
In this lecture we will add two types of time-dependency
\[ \begin{align} \frac{\partial u}{\partial t} + \mathcal{L}(u) &= f \\ \frac{\partial^2 u}{\partial t^2} + \mathcal{L}(u) &= f \end{align} \]
and approximations \(u_N(\boldsymbol{x}, t) \in V_N = \text{span}\{\psi_j\}_{j=0}^N\):
\[ u_N(\boldsymbol{x}, t) = \sum_{j=0}^N \hat{u}_j(t) \psi_j(\boldsymbol{x}) \]
where the expansion coefficients are time dependent.
Consider the equation
\[ \frac{\partial u}{\partial t} + \mathcal{L}(u) = f \]
A finite difference approximation in time, with forward Euler:
\[ \frac{u^{n+1}-u^n}{\Delta t} + \mathcal{L}(u^n) = f^n \]
where
\[ u^n(\boldsymbol{x}) = u(\boldsymbol{x}, t_n), f^n(\boldsymbol{x}) = f(\boldsymbol{x}, t_n) \]
and time is discretized as always for time domain \([0, T]\)
\[ t_n = n \Delta t, \quad n=0,1, \ldots, N_t, \quad N_t=T/\Delta t \]
We normally drop the spatial dependence and write only \(u^n\) or \(f^n\).
\[ \mathcal{R}(u^{n+1}; u^n) = \frac{u^{n+1}-u^n}{\Delta t} + \mathcal{L}(u^n) - f^n \]
Note
The notation \(\mathcal{R}(u^{n+1}; u^n)\) is used to indicate that \(u^{n+1}\) is the unknown and \(u^n\) (right of the semicolon) is known.
Introduce the approximation to \(u^n(\boldsymbol{x})=u(\boldsymbol{x}, t_n)\)
\[ u(\boldsymbol{x}, t_n) \approx u^{n}_N(\boldsymbol{x}) = \sum_{j=0}^N \hat{u}^{n}_j \psi_j(\boldsymbol{x}) \]
where \(\hat{u}^n_j = \hat{u}_j(t_n)\) are the time dependent expansion coefficients (the unknowns at time \(t_n\)). Insert into the residual to get the numerical residual
\[ \mathcal{R}_N = \mathcal{R}(u^{n+1}_N; u^{n}_N) = \frac{u_N^{n+1}-u_N^n}{\Delta t} + \mathcal{L}(u_N^n) - f^n \]
The method of weighted residuals is to find \(u^{n+1}_N \in V_N\) such that
\[ (\mathcal{R}_N, v) = 0, \quad \forall \, v \in W \]
and for the Galerkin method \(W = V_N\).
In order to solve the time-dependent problem we need to solve this Galerkin problem many times. The procedure is
\[ (\mathcal{R}_N, v) = 0, \quad \forall \, v \in V_N \]
\[ \text{Exponential decay}\quad\frac{\partial u(t)}{\partial t} = -a u(t) \]
\[ \text{Vibration equation} \quad \frac{\partial^2 u(t)}{\partial t^2} + \omega^2 u(t) = 0 \]
\[ \text{Wave equation} \quad \frac{\partial^2 u(x, t)}{\partial t^2} = c^2\frac{\partial^2 u(x, t)}{\partial x^2} \]
In order to study stability we introduced the ansatz
\[ u^{n+1} = g u^{n} \rightarrow u^{n} = g^n u^0 \]
into the discretized equations. For stability we required \(|g| \le 1\).
We actually called the amplification factor \(A\), but since then we have started using matrices that we rather have as \(A\). Hence the amplification factor is now called \(g\).
\[ \frac{\partial^2 u(t)}{\partial t^2} + \omega^2 u(t) = 0 \]
Discretize with central finite difference
\[ \frac{u^{n+1}-2u^n+u^{n-1}}{\Delta t^2} + \omega^2 u^n = 0 \]
Insert for ansatz \(u^n = g^n u^0\)
\[ g^n(g-2+g^{-1})u^{0} + (\omega \Delta t)^2 g^n u^0 = 0 \]
Divide by \(g^n u^0\) \[ g+g^{-1} = 2-(\omega \Delta t)^2 \]
and solve quadratic equation (\(g\) may be complex) to find stability \(|g|=1\) for \[ \omega \Delta t \le 2 \]
\[ \frac{\partial u(x, t)}{\partial t} = \frac{\partial^2 u(x, t)}{\partial x^2} \]
Use forward Euler in time and central difference in space
\[ u_j^{n+1} - u_j^n = \frac{\Delta t}{\Delta x^2} (u^n_{j+1}-2u^n_j+u^n_{j-1}) \]
where \(u^n_j = u(j\Delta x, n\Delta t)\) and \(x_j=j\Delta x\) and \(t_n=n\Delta t\). Make the ansatz as always
\[ u^{n+1}_j = g u^{n}_j \rightarrow u^{n}_j = g^n u^0_j \]
and let the initial condition be a periodic Fourier wave with wavenumber \(k\)
\[ u^0_j = e^{\hat{\imath}k x_j} \]
where \(\hat{\imath}=\sqrt{-1}\).
\[ u_j^{n+1} - u_j^n = \frac{\Delta t}{\Delta x^2} (u^n_{j+1}-2u^n_j+u^n_{j-1}) \]
\[ \boldsymbol{u}^n = (u^n_j)_{j=0}^N \]
\[ \boldsymbol{u}^{n+1}-\boldsymbol{u}^n = \frac{\Delta t}{\Delta x^2}\tilde{D}^{(2)} \boldsymbol{u}^n \]
\[ D^{(2)} = \frac{1}{\Delta x^2} \tilde{D}^{(2)} = \frac{1}{\Delta x^2} \underbrace{\begin{bmatrix} -2 & 1 & 0 & 0 & 0 & 0 & 0 & 1 \\ 1 & -2 & 1 & 0 & 0 & 0 & 0 & 0 \\ 0 & 1 & -2 & 1 & 0 & 0 & 0 & 0 \\ \vdots & & & \ddots & & & &\cdots \\ 0 & 0 & 0 & 0 & 1& -2& 1& 0 \\ 0 & 0 & 0& 0& 0& 1& -2& 1 \\ 1 & 0 & 0 & 0 & 0 & 0 & 1 & -2 \\ \end{bmatrix}}_{\tilde{D}^{(2)}} \]
\[ \boldsymbol{u}^{n+1}-\boldsymbol{u}^n = \frac{\Delta t}{\Delta x^2}\tilde{D}^{(2)} \boldsymbol{u}^n \]
Insert for ansatz \(\boldsymbol{u}^n = g^n \boldsymbol{u}^0\)
\[ (g-1)\boldsymbol{u}^0 = \frac{\Delta t}{\Delta x^2} \tilde{D}^{(2)} \boldsymbol{u}^0 \]
Inserting for \({u}_j^0=e^{\hat{\imath} k j \Delta x}\) we get
\[ (g-1)e^{\hat{\imath}kj \Delta x} = \frac{\Delta t}{\Delta x^2} (e^{\hat{\imath}k(j+1)\Delta x} - 2e^{\hat{\imath}kj\Delta x} + e^{\hat{\imath}k(j-1)\Delta x}) \]
Divide by \(e^{\hat{\imath}kj\Delta x}\) to obtain
\[ g-1 = \frac{\Delta t}{\Delta x^2} (e^{\hat{\imath}k\Delta x} - 2 + e^{-\hat{\imath}k\Delta x}) \]
Use \(e^{\hat{\imath}x}+e^{-\hat{\imath}x} = 2 \cos x\), \(\cos(2x) = \cos^2 x - \sin^2 x\) and \(1=\cos^2x+\sin^2x\)
\[ g = 1 - \frac{4 \Delta t}{\Delta x^2}\sin^2\left(\frac{k\Delta x}{2}\right) \]
We want \(|g|\le 1\), so we need
\[ \Big|1 - \frac{4 \Delta t}{\Delta x^2}\sin^2\left(\frac{k\Delta x}{2}\right)\Big| \le 1 \]
Since \(\sin^2\left(k \Delta x/2\right) \le 1\) and positive, we get that \(1- \frac{4 \Delta t}{\Delta x^2}\) is always less than 1. However, \(1- \frac{4 \Delta t}{\Delta x^2}\) can be smaller than \(-1\), and that gives us the stability limit
\[ 1- \frac{4 \Delta t}{\Delta x^2} \ge -1 \Rightarrow \boxed{\Delta t \le \frac{\Delta x^2}{2}} \]
\[ \left|1- \frac{4 \Delta t}{\Delta x^2} \right| \le 1 \Rightarrow \Delta t \le \frac{\Delta x^2}{2} \]
Can we find an easier approach?
We have the simple looking formula
\[ (g-1)\boldsymbol{u}^0 = \frac{\Delta t}{\Delta x^2} \tilde{D}^{(2)} \boldsymbol{u}^0 \]
But we cannot eliminate the two \(\boldsymbol{u}^0\) terms on each side because of the matrix \(\tilde{D}^{(2)}\)!
Eigenvalues! The eigenvalues \(\lambda\) of a matrix \(A\) with associated eigenvectors \(\boldsymbol{x}\) are
\[ A \boldsymbol{x} = \lambda \boldsymbol{x} \]
Hence the simplification \(\tilde{D}^{(2)} \boldsymbol{u}^0=\lambda \boldsymbol{u}^0\) and
\[ (g-1)\boldsymbol{u}^0 = \frac{\Delta t}{\Delta x^2} \lambda \boldsymbol{u}^0 \Rightarrow g=1+\frac{\lambda \Delta t}{\Delta x^2} \]
Assume the ansatz \(\boldsymbol{u}^n=g^n\boldsymbol{u}^0\): \[ (g-1)\boldsymbol{u}^0 = \frac{\Delta t}{\Delta x^2} \tilde{D}^{(2)} \boldsymbol{u}^0 \]
Insert for \(\tilde{D}^{(2)}\boldsymbol{u}^0 = \lambda \boldsymbol{u}^0\) to get
\[ g=1+\frac{\lambda \Delta t}{ \Delta x^2} \]
To satisfy \(|g| \le 1\)
\[ |g|=|1+\frac{\lambda \Delta t}{ \Delta x^2}| \le 1 \]
But we need to compute the eigenvalues..
import numpy as np
from scipy import sparse
N = 11
D2 = sparse.diags((1, 1, -2, 1, 1), (-N, -1, 0, 1, N), shape=(N+1, N+1))
Lambda = np.linalg.eig(D2.toarray())[0]
Lambdaarray([-4.00000000e+00, -3.73205081e+00, -3.00000000e+00, -2.00000000e+00,
-1.00000000e+00, -4.53075522e-16, -2.67949192e-01, -2.67949192e-01,
-1.00000000e+00, -3.73205081e+00, -2.00000000e+00, -3.00000000e+00])The minimum eigenvalue is -4 (worst case). Hence we obtain again exactly the same limit
\[ |1+\frac{\lambda \Delta t}{ \Delta x^2}|\le 1 \Rightarrow |1-\frac{4 \Delta t}{ \Delta x^2}| \le 1 \Rightarrow \Delta t \le \frac{\Delta x^2}{2} \]
But with a lot less work!
Note
The complex exponentials \(e^{\hat{\imath} k x}\) are eigenfunctions of the Laplace operator in 1D, so we actually used eigenvalue theory also for the hard approach, we just did not mention it!
For the forward Euler method we now consider instead the Galerkin method for the discretization of space (instead of finite differences)
\[ (\mathcal{R}_N, v)=0 \Rightarrow \left(u^{n+1}_N, v\right) = \left(u^{n}_N, v\right) + \Delta t \left(\mathcal{L}(u^n_N), v\right) \]
and make the same ansatz as before
\[ u_N^{n+1} = g u_N^n \quad \text{and thus} \quad u^{n}_N = g^n u^0_N \]
Insert into the variational form
\[ \left(g^{n+1}u^{0}_N, v\right) = \left(g^n u^{0}_N, v\right) + \Delta t \left(\mathcal{L}(g^n u^0_N), v\right) \]
Divide by \(g^n\) (\(g\) is not dependent on \(x\)) to obtain
\[ g \left(u^{0}_N, v\right) = \left(u^{0}_N, v\right) + \Delta t \left(\mathcal{L}(u^0_N), v\right) \]
Insert for \(u^0_N = \sum_{j=0}^N \hat{u}^0_j \psi_j\) and \(v=\psi_i\) to obtain
\[ g \sum_{j=0}^N \left(\psi_j, \psi_i \right) \hat{u}^0_j = \sum_{j=0}^N \left(\psi_j, \psi_i\right)\hat{u}^0_j + \Delta t \sum_{j=0}^N\left(\mathcal{L}(\psi_j), \psi_i\right) \hat{u}^0_j \]
In matrix form this is
\[ g A \boldsymbol{\hat{u}}^0 = A \boldsymbol{\hat{u}}^0 + \Delta t M \boldsymbol{\hat{u}}^0 \]
where \(a_{ij}=(\psi_j, \psi_i)\) and \(m_{ij} = \left( \mathcal{L}(\psi_j), \psi_i\right)\). Multiply from the left by \(A^{-1}\) to obtain
\[ g \boldsymbol{\hat{u}}^0 = \boldsymbol{\hat{u}}^0 + \Delta t A^{-1}M \boldsymbol{\hat{u}}^0 \]
Compute the eigenvalues \(\lambda\) of the matrix \(H = A^{-1}M\) such that \(H \boldsymbol{\hat{u}}^0 = \lambda \boldsymbol{\hat{u}}^0\) and
\[ g \boldsymbol{\hat{u}}^0 = \boldsymbol{\hat{u}}^0 + \lambda \Delta t \boldsymbol{\hat{u}}^0 \Rightarrow \boxed{g = 1 + \lambda \Delta t} \]
\[ \text{Stability limit:}\quad |g| = |1+\lambda \Delta t| \le 1 \]
\[ \frac{\partial u}{\partial t} = \frac{\partial^2 u}{\partial x^2}, \quad x, t \in (0, L) \times (0, T] \]
\[ \begin{align} u(x, 0) &= \sin(\pi x /L) + \sin(10 \pi x/L) \\ u(0, t) &= 0, u(L, t) = 0 \end{align} \]
Forward Euler in time, Galerkin in space, and Dirichlet Legendre polynomials:
\[ \begin{matrix} \text{Basis:}\,\, & \psi_j(x) = P_j(X)-P_{j+2}(X) & V_N = \text{span}\{\psi_j\}_{j=0}^N \\ \text{Mapping:} & x(X) = \frac{L}{2}(1+X) & X(x) = \frac{2x}{L}-1 \end{matrix} \]
We get the variational form used on the previous slide with diffusion for \(\mathcal{L}(\psi_j)\) and integration by parts (boundary terms canceled since \(\psi_j(0)=\psi_j(L)=0\)): \[ \sum_{j=0}^N(\psi_j, \psi_i) \hat{u}^{n+1}_j = \sum_{j=0}^N(\psi_j, \psi_i) \hat{u}^{n}_j - \Delta t\left( \sum_{j=0}^N (\psi'_j, \psi'_i) \hat{u}^{n}_j - \cancel{[u^n_N \psi_i]_{x=0}^{x=L}} \right) \]
\[ \begin{align} \int_{0}^L\psi'_j(x) \psi'_i(x) dx &= \int_{-1}^1 (P'_{j}(X)-P'_{j+2}(X))\frac{dX}{dx} (P'_{i}(X)-P'_{i+2}(X))\frac{dX}{dx} \frac{dx}{dX}dX \\ &= \frac{2}{L} \int_{-1}^1 (P'_{j}(X)-P'_{j+2}(X)) (P'_{i}(X)-P'_{i+2}(X))dX \\ &= \frac{2}{L}(P'_{j}-P'_{j+2}, P'_{i}-P'_{i+2})_{L^2(-1, 1)} \end{align} \]
Using equality: \((2j+3)P_{j+1} = P'_{j+2}-P'_{j}\) and \((P_{i+1}, P_{j+1})_{L^2(-1,1)}=\|P_{i+1}\|^2\delta_{ij}\) and \(\|P_i\|^2=\frac{2}{2j+1}\)
\[ \begin{align} \int_{0}^L\psi'_j(x) \psi'_i(x) dx &= \frac{2}{L}(-(2j+3)P_{j+1}, -(2j+3)P_{i+1}) \\ &= \frac{2}{L}(2j+3)^2\|P_{i+1}\|^2 \delta_{ij}\\ &= \frac{8j+12}{L} \delta_{ij} \end{align} \]
\[ \begin{align} \int_{0}^L\psi_j(x) \psi_i(x) dx &= \int_{-1}^1 (P_{j}(X)-P_{j+2}(X)) (P_{i}(X)-P_{i+2}(X))\frac{dx}{dX}dX \\ &= \frac{L}{2}(P_{j}-P_{j+2}, P_i-P_{i+2})_{L^2(-1, 1)} \\ &= \frac{L}{2}\left( (P_j, P_i) - (P_{j+2}, P_i) - (P_j, P_{i+2}) + (P_{j+2}, P_{i+2}) \right) \end{align} \]
Using now \((P_j, P_i) = \|P_i\|^2 \delta_{ij} = \frac{2}{2i+1} \delta_{ij}\):
\[ \begin{matrix} j=i & (\psi_i, \psi_i) = \frac{L}{2}((P_i, P_i) + (P_{i+2}, P_{i+2})) = \frac{L}{2}(\|P_i\|^2 + \|P_{i+2}\|^2) \\ j=i+2 & (\psi_{i+2}, \psi_i) = -(P_{i+2}, P_{i+2}) = - \frac{L}{2}\|P_{i+2}\|^2 \end{matrix} \]
Since the mass matrix \(a_{ij}=a_{ji}=(\psi_j, \psi_i)\) is symmetric, we get the tri-diagonal
\[ a_{ij} = a_{ji} = \frac{L}{2}\begin{cases} \|P_i\|^2+\|P_{i+2}\|^2, \quad &i = j \\ - \|P_{i+2}\|^2, \quad &j = i+2 \\ 0, \quad &\text{otherwise} \end{cases} \]
It is rather messy to work with composite basis functions. A very smart trick is thus to use a stencil matrix \(S\), such that (summation on repeated \(j\) index)
\[ \psi_i = P_i-P_{i+2} = s_{ij} P_j \]
This defines \(S \in \mathbb{R}^{(N+1) \times (N+3)}\) for the Dirichlet problem as
\[ s_{ij} = \begin{cases} 1 \quad &i=j \\ -1 \quad &j=i+2 \end{cases} \quad S = \begin{bmatrix} 1 & 0 & -1 & 0 & 0 & \cdots\\ 0 & 1 & 0 & -1 & 0 & \cdots\\ 0 & 0 & 1 & 0 & -1 & \cdots\\ \vdots & \vdots & \vdots & \ddots & \ddots & \ddots \\ 0 & 0 & 0 & \cdots & 1 & 0 & -1 \end{bmatrix} \]
With \(\boldsymbol{\psi} = \{\psi_i\}_{i=0}^N\) and \(\boldsymbol{P}=\{P_i\}_{i=0}^{N+2}\) we get all basis functions in matrix form:
\[ \boldsymbol{\psi} = S \boldsymbol{P} \]
Consider the mass matrix
\[ \begin{align} (\psi_j, \psi_i) &= (P_j-P_{j+2}, P_i-P_{i+2}) \\ &= (P_j, P_i) - (P_j, P_{i+2}) - (P_{j+2}, P_i) + (P_{j+2}, P_{i+2}) \end{align} \]
You need to sort out the four (diagonal) matrices on the right.
Now use stencil matrix instead (summation on \(k\) and \(l\)):
\[ \begin{align} (\psi_j, \psi_i) &= (s_{jk}P_k, s_{il}P_l) \\ &= s_{il} (P_l, P_k) s_{jk} \end{align} \]
You need only the diagonal matrix \(P = ((P_l, P_k))_{k,l=0}^{N+2}\), where \((P_l, P_k)=\frac{2}{2l+1}\delta_{kl}\).
Matrix form
\[ A = ((\psi_j, \psi_i))_{i,j=0}^{N} = S P S^T \]
\[ \begin{align} (\psi''_j, \psi_i) &= (s_{jk}P''_k, s_{il}P_l) \\ &= s_{il} (P''_l, P_k) s_{jk} \end{align} \]
Again you need only the single matrix using orthogonal polynomials \(q_{kl}=(P''_l, P_k) = -(P'_l, P'_k)\)
\[ M = ((\psi''_j, \psi_i))_{i,j=0}^{N} = S Q S^T \]
import numpy as np
import sympy as sp
from scipy import sparse
from shenfun import TrialFunction, TestFunction, FunctionSpace, \
project, inner, Dx, la, Function
x, t, c, L = sp.symbols('x,t,c,L')
class FE_Diffusion:
def __init__(self, N, L0=1, u0=sp.sin(sp.pi*x/L)+sp.sin(10*sp.pi*x/L), family='L'):
self.N = N
self.L = L0
self.u0 = u0.subs({L: L0})
self.V = self.get_function_space(family=family)
self.uh_np1 = Function(self.V)
self.uh_n = Function(self.V)
self.A, self.S = self.get_mats()
self.sol = la.Solver(self.A)
self.A = self.A.diags()
self.S = self.S.diags()
def get_function_space(self, family='L'):
return FunctionSpace(self.N+1, family, bc=(0, 0), domain=(0, self.L))
def get_mats(self):
N = self.N
u = TrialFunction(self.V)
v = TestFunction(self.V)
a = inner(u, v)
s = inner(Dx(u, 0, 1), Dx(v, 0, 1))
return a, s
def get_eigenvalues(self):
return np.linalg.eig(np.linalg.inv(self.A.toarray()) @ self.S.toarray())[0]
def __call__(self, Nt, dt=0.1, save_step=100):
self.uh_n[:] = project(self.u0, self.V) # unm1 = u(x, 0)
xj = self.V.mesh()
plotdata = {0: self.uh_n(xj)}
f = Function(self.V)
for n in range(2, Nt+1):
f[:-2] = self.A @ self.uh_n[:-2] - dt*(self.S @ self.uh_n[:-2])
self.uh_np1[:] = self.sol(f)
self.uh_n[:] = self.uh_np1
if n % save_step == 0: # save every save_step timestep
plotdata[n] = self.uh_np1(xj)

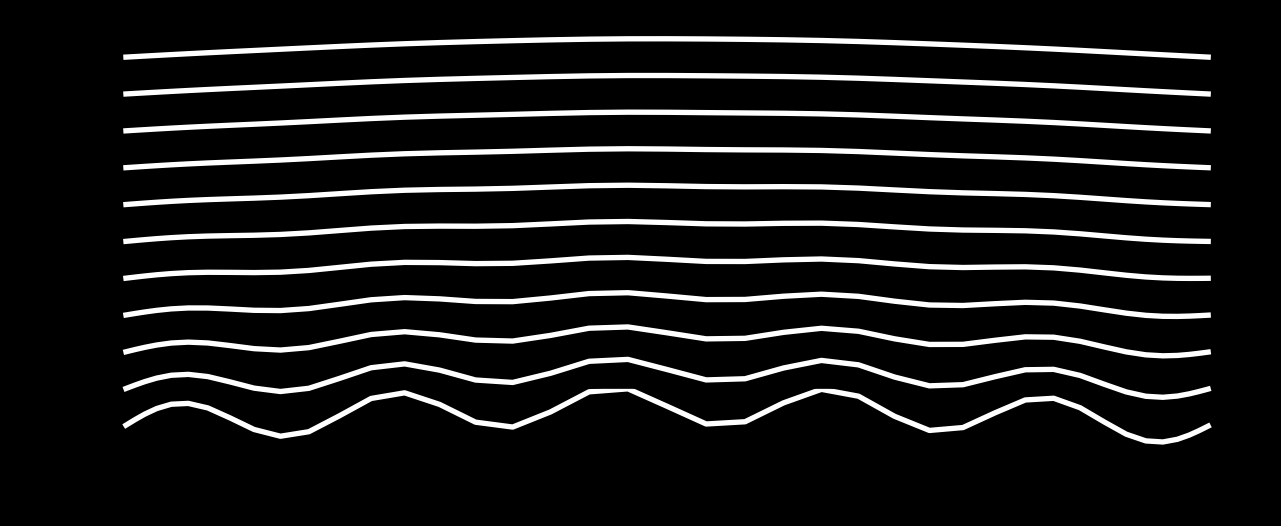

return plotdataUse longest stable time step \(dt=2/\max (\lambda)\)

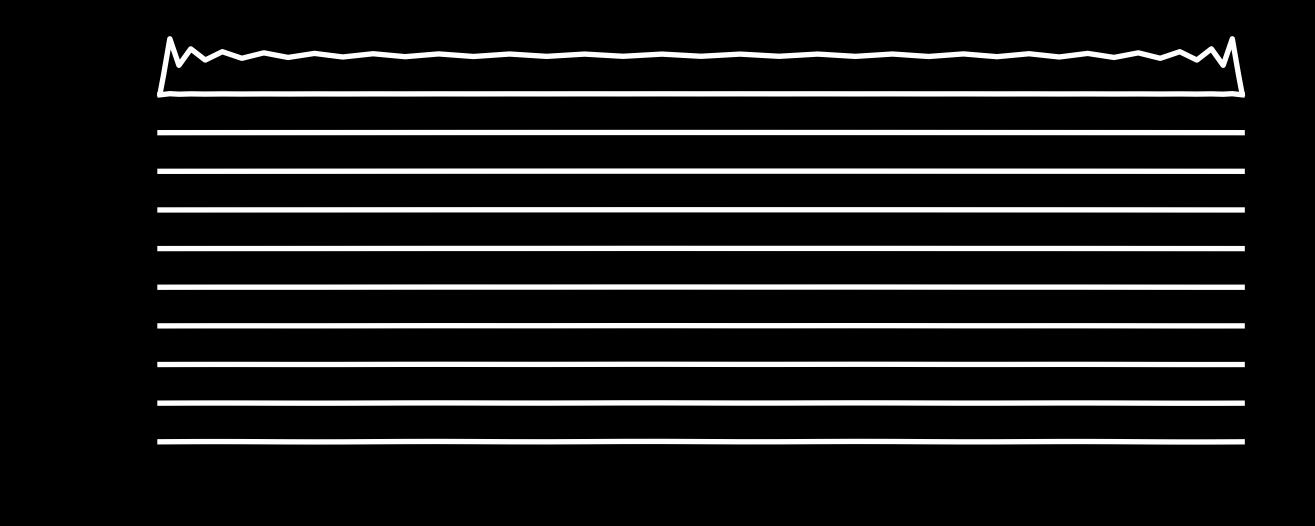

The forward Euler method requires a very short time step for the diffusion equation. How about the backward Euler method
\[ \left(u^{n+1}_N, v\right) = \left(u^{n}_N, v\right) + \Delta t \left(\frac{\partial^2 u^{n+1}_N}{\partial x^2}, v\right) \]
The linear algebra problem is now
\[ \sum_{j=0}^N \left( (\psi_j, \psi_i) + \Delta t (\psi'_j, \psi'_i) \right) \hat{u}^{n+1}_j = \sum_{j=0}^N(\psi_j, \psi_i) \hat{u}^{n}_j \]
Insert the ansatz \(u^{n+1}_N = g u^n_N\)
\[ \sum_{j=0}^N g \left( (\psi_j, \psi_i) + \Delta t (\psi'_j, \psi'_i) \right) \hat{u}^{0}_j = \sum_{j=0}^N(\psi_j, \psi_i) \hat{u}^{0}_j \]
\[ \sum_{j=0}^N g \left( (\psi_j, \psi_i) + \Delta t (\psi'_j, \psi'_i) \right) \hat{u}^{0}_j = \sum_{j=0}^N(\psi_j, \psi_i) \hat{u}^{0}_j \]
becomes
\[ g (A + \Delta t S) \boldsymbol{\hat{u}}^0 = A \boldsymbol{\hat{u}}^0 \]
If we multiply from left to right by \(A^{-1}\) we get
\[ g (I + \Delta t A^{-1}S) \boldsymbol{\hat{u}}^0 = \boldsymbol{\hat{u}}^0 \]
Here we can once again use \(H=A^{-1}S\) and \(H \boldsymbol{\hat{u}}^0 = \lambda \boldsymbol{\hat{u}}^0\) and thus we find
\[ g = \frac{1}{1+\Delta t \lambda} \]
Since all time steps and eigenvalues are real numbers larger than 0, \(g\) is always less than 1 and positive and the backward Euler method is as such unconditionally stable.
\[ \frac{\partial^2 u}{\partial t^2} = c^2 \frac{\partial^2 u}{\partial x^2}, \quad (x, t) \in (0, L) \times (0, T] \]
\[ u(x, 0) = f(x) \quad \frac{\partial u}{\partial t}(x, 0) = 0 \]
We will consider both Dirichlet and Neumann boundary conditions in space and use finite differences in time such that
\[ \frac{u^{n+1}-2u^n+u^{n-1}}{\Delta t^2} = c^2 \frac{\partial^2 u^n}{\partial x^2} \]
A numerical residual \(\mathcal{R}_N = \mathcal{R}(u^{n+1}_N; u^n_N, u^{n-1}_N)\) can now be defined as
\[ \mathcal{R}_N={u_N^{n+1}-2u_N^n+u_N^{n-1}} - \alpha^2 (u_N^n)'' \]
with \(\alpha = c \Delta t\) and \(u'=\frac{\partial u}{\partial x}\).
Initialize \(u_N^0\) and \(u_N^1\). The Galerkin method is to find \(u^{n+1}_N \in V_N\) such that
\[ \left({u_N^{n+1}-2u_N^n+u_N^{n-1}} - \alpha^2 (u_N^n)'', v \right) = 0, \quad \forall \, v \in V_N \]
for \(n = 1, \ldots, N_t-1\). We can also integrate the last term by parts
\[ ({u_N^{n+1}-2u_N^n+u_N^{n-1}}, v) + \alpha^2 \left( \left((u_N^n)', v' \right) - \left[(u^n_N)' v\right]_{x=0}^{x=L} \right) = 0, \quad \forall \, v \in V_N \]
Insert for \(u^{n-1}_N, u^{n}_N, u^{n+1}_N \in V_N\) and use \(v = \psi_i\) to get the linear algebra problem
\[ \sum_{j=0}^N \left(\psi_j, \psi_i \right) \left(\hat{u}^{n+1}_j - 2\hat{u}^{n}_j + \hat{u}^{n-1}_j\right) + \alpha^2 \left(\sum_{j=0}^N \left(\psi'_j, \psi'_i \right) \hat{u}^n_j - \left[(u^n_N)' \psi_i\right]_{x=0}^{x=L} \right) = 0 \]
Note
All time dependency is in the expansion coefficients \(\hat{u}^n_{j}, \hat{u}^{n}_{j}, \hat{u}^{n-1}_{j}\).
Rearrange such that the unknown \(\hat{u}_j^{n+1}\) is on the left hand side and the rest of the known terms are on the right hand side
\[ \sum_{j=0}^N \left(\psi_j, \psi_i \right) \hat{u}^{n+1}_j = \sum_{j=0}^N \left(\psi_j, \psi_i \right) (2\hat{u}^{n}_j - \hat{u}^{n-1}_j) - \alpha^2 \left( \sum_{j=0}^N \left(\psi'_j, \psi'_i \right) \hat{u}^n_j - \left[(u^n_N)' \psi_i\right]_{x=0}^{x=L} \right) \]
With matrix notation, \(a_{ij} = (\psi_j, \psi_i)\) and \(s_{ij} = (\psi'_j, \psi'_i)\), we get
\[ A \boldsymbol{\hat{u}}^{n+1} = A (2 \boldsymbol{\hat{u}}^n - \boldsymbol{\hat{u}}^{n-1}) - \alpha^2 \left( S \boldsymbol{\hat{u}}^n - \boldsymbol{b}^n \right) \]
where \(\boldsymbol{b}^n = ((u^n_N)'(L) \psi_i(L) - (u^n_N)'(0) \psi_i(0))_{i=0}^N\).
We can write this as
\[ A \boldsymbol{\hat{u}}^{n+1} = \boldsymbol{f}^n \]
where the vector \(\boldsymbol{f}^n = A (2 \boldsymbol{\hat{u}}^n - \boldsymbol{\hat{u}}^{n-1}) - \alpha^2 \left( S \boldsymbol{\hat{u}}^n - \boldsymbol{b}^n\right)\).
\[ {b}_i^n = (u^n_N)'(L) \psi_i(L) - (u^n_N)'(0) \psi_i(0), \quad i=0,1, \ldots, N \]
\[ \psi_i(0) = \psi_i(L) = 0, \quad i=0, 1, \ldots, N \]
\[ \Rightarrow \boldsymbol{b}^n = 0, \quad \forall \, n=1, 2, \ldots, N_t-1 \]
Use a boundary function (with reference coordinate \(X\in [-1, 1]\)) \[ B(x)=\tilde{B}(X) = \frac{b}{2}(1+X) + \frac{a}{2}(1-X) \]
and solve for \(\tilde{u}^n_N \in V_N = \text{span}\{\psi_j\}_{j=0}^N\). Final solution is then
\[ u^n_N = \tilde{u}^n_N + B(x) \]
Makes use of Lagrange polynomials and \(\psi_i(0)= 1\) for \(i=0\) and zero otherwise. Similarly, \(\psi_i(L)=1\) for \(i=N\) and zero otherwise. Hence it is only \(b^n_0\) and \(b^n_N\) that potentially are different from zero. However,
\[ u(0, t)=a = \hat{u}^{n+1}_0 \quad \text{and} \quad u(L, t) = b = \hat{u}^{n+1}_N \]
Note
Since \(\hat{u}_0\) and \(\hat{u}_N\) are known we do not solve the linear PDE for \(i=0\) or \(i=N\). Simply ident the coefficient matrix \(A\) and set \(f^n_0=a\) and \(f^n_N=b\).
\[ \begin{bmatrix} 1 & 0 & 0 & \cdots & 0 \\ a_{10} & a_{11}& a_{12} & \cdots & a_{1N} \\ \vdots & \vdots & \vdots & \ddots & \vdots \\ a_{N-1, 0} & a_{N-1, 1}& a_{N-1, 2}& \cdots & a_{N-1,N} \\ 0 & \cdots & 0 & 0 & 1 \end{bmatrix} \begin{bmatrix} \hat{u}^{n+1}_0 \\ \hat{u}^{n+1}_1 \\ \vdots \\ \hat{u}^{n+1}_{N-1} \\ \hat{u}^{n+1}_N \end{bmatrix} = \begin{bmatrix} a \\ f^{n}_1 \\ \vdots \\ f^{n}_{N-1} \\ b \end{bmatrix} \]
\[ {b}_i^n = (u^n_N)'(L) \psi_i(L) - (u^n_N)'(0) \psi_i(0), \quad i=0,1, \ldots, N \]
Use basis functions that eliminates \(b_i^n\) and ensures \((\tilde{u}^n_N)'(0)=(\tilde{u}^n_N)'(L)=0\) \[ \psi'_j(0) = \psi'_j(L) = 0, \quad j=0, 1, \ldots, N \]
Add a boundary function \(u^n_N=\tilde{u}^n_N+B(x)\) that satisfied \(B'(0)=g_0\) and \(B'(L)=g_L\)
\[ B(x) = \tilde{B}(X) = \frac{L}{8}\left({g_L}(1+X)^2 - {g_0}(1-X)^2\right) \]
The \(L\) is there since \(X=-1+\frac{2x}{L}\) and \(\frac{\partial X}{\partial x}=\frac{2}{L}\) and thus
\[ \frac{\partial B}{\partial x} = \frac{\partial \tilde{B}}{\partial X}\frac{\partial X}{\partial x} = \frac{2}{L}\frac{\partial \tilde{B}}{\partial X} \]
\[ {b}_i^n = (u^n_N)'(L) \psi_i(L) - (u^n_N)'(0) \psi_i(0), \quad i=0,1,\ldots, N \]
Insert for \((u^n_N)'(0) = g_0\) and \((u^n_N)'(L)=g_L\)
\[ {b}_i^n = g_L \psi_i(L) - g_0 \psi_i(0) \]
Use any basis function, except those where all \(\psi_i(0)=0\) and \(\psi_i(L)=0\), for all \(i=0,1,\ldots, N\).
This works for the finite element method, where \(\psi_0(0)=1\) and \(\psi_N(L)=1\). Nothing else is required
Also works for the global Galerkin method, e.g., Legendre polynomials \(\psi_i(x)=P_i(X)\).
Does not work for Chebyshev because the method relies on integration by parts, which does not work with the Chebyshev weights \(\omega(x)=1/\sqrt{1-X^2}\).
We have derived the linear algebra problem
\[ A (\boldsymbol{\hat{u}}^{n+1} -2 \boldsymbol{\hat{u}}^n + \boldsymbol{\hat{u}}^{n-1}) = - \alpha^2 \left( S \boldsymbol{\hat{u}}^n - \boldsymbol{b}^n \right) \]
The ansatz \(u_N^{n+1}=gu^{n}_N=g^{n+1}u_N^0\) also implies that
\[ \boldsymbol{\hat{u}}^{n+1} = g \boldsymbol{\hat{u}}^n = g^{n+1} \boldsymbol{\hat{u}}^0 \tag{1} \]
since
\[ u^{n+1}_N = g u^{n}_N \Rightarrow \sum_{j=0}^N \hat{u}^{n+1}_j \psi_j = g \sum_{j=0}^N \hat{u}^{n}_j \psi_j = \sum_{j=0}^N (g\hat{u}^{n}_j) \psi_j \]
Hence \(\hat{u}^{n+1}_j = g\hat{u}^n_j\). Recursively, we get (1).
\[ A (\boldsymbol{\hat{u}}^{n+1} -2 \boldsymbol{\hat{u}}^n + \boldsymbol{\hat{u}}^{n-1}) = - \alpha^2 \left( S \boldsymbol{\hat{u}}^n - \boldsymbol{b}^n \right) \]
Insert for \(\boldsymbol{\hat{u}}^{n} = g^{n} \boldsymbol{\hat{u}}^0\) and assume that \(\boldsymbol{b}^n=\boldsymbol{0}\)
\[ (g^{n+1}-2g^n+g^{n-1}) A \boldsymbol{\hat{u}}^0 = -\alpha^2 g^n S \boldsymbol{\hat{u}}^0 \]
Divide by \(g^n\) and multiply by \(A^{-1}\) from the left
\[ (g - 2 + g^{-1}) I \boldsymbol{\hat{u}}^0 = -\alpha^2 A^{-1}S \boldsymbol{\hat{u}} ^{0} \]
Note
The identity matrix \(I\) on the left is optional and can be removed.
\[ (g - 2 + g^{-1}) I \boldsymbol{\hat{u}}^0 = -\alpha^2 A^{-1}S \boldsymbol{\hat{u}} ^{0} \]
Use \(H = A^{-1} S\) and the eigenvalues \(H \boldsymbol{\hat{u}}^0 = \lambda I \boldsymbol{\hat{u}}^0\) to get
\[ (g - 2 + g^{-1}) I \boldsymbol{\hat{u}}^0 = -\alpha^2 \lambda I \boldsymbol{\hat{u}} ^{0} \]
and after eliminating the equal terms on both sides \[ g + g^{-1} = \beta \tag{1} \]
where \(\beta = -\alpha^2 \lambda +2\).
Note
If \(g<1\) is a root of (1), then \(g^{-1}>1\) is also a root, which is unstable. All roots must be \(\le 1\). Hence \(|g|=1\) is the only possible solution.
\[ g + g^{-1} = \beta \]
Solve quadratic equation for \(g\)
\[ g = \frac{\beta \pm \sqrt{\beta^2-4}}{2} \]
Assume \(-2 \le \beta \le 2\) such that \(\beta^2-4 \le 0\) and \(\sqrt{\beta^2-4} = a \hat{\imath}\), with \(a=\sqrt{4-\beta^2}\) real
\[ 2|g| = \left| \beta \pm \sqrt{\beta^2-4}\right| = \left|\beta \pm a\hat{\imath} \right| = \sqrt{\beta^2+a^2} = \sqrt{\beta^2+4-\beta^2}=2 \]
For \(-2 \le \beta \le 2\) we get that \(|g|=1\) and the numerical solution is stable!

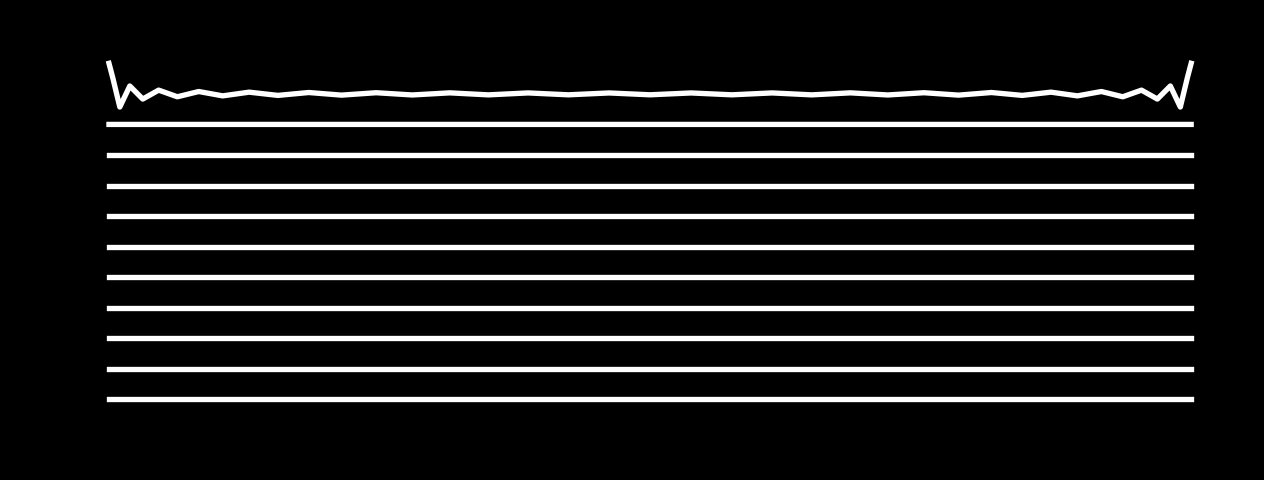

Using \(\beta=-\alpha^2 \lambda +2 = -(c \Delta t)^2 \lambda +2 = -2\) the longest possible time step is
\[ \Delta t \le \frac{1}{c}\sqrt{\frac{4}{\max(\lambda)}} \]
We are using the same function space and thus the same matrices \(A\) and \(S\) as the diffusion equation. We only need to reimplement the time stepper in __call__.
class Wave(FE_Diffusion):
def __init__(self, N, L0=1, c0=1, u0=sp.sin(sp.pi*x/L)):
u0 = u0.subs({c: c0})
FE_Diffusion.__init__(self, N, L0=L0, u0=u0)
self.c = c0
self.uh_nm1 = np.zeros_like(self.uh_n)
def __call__(self, Nt, dt=0.1, save_step=100):
self.uh_nm1[:] = project(self.u0.subs(t, 0), self.V)
xj = self.V.mesh()
plotdata = {0: self.uh_nm1(xj)}
self.uh_n[:] = project(self.u0.subs(t, dt), self.V)
if save_step == 1: plotdata[1] = self.uh_n(xj)
f = np.zeros(self.N+1)
alfa = self.c*dt
for n in range(2, Nt+1):
f[:-2] = self.A @ (2*self.uh_n[:-2]-self.uh_nm1[:-2]) \
- alfa**2*(self.S @ self.uh_n[:-2])
self.uh_np1[:] = self.sol(f)
self.uh_nm1[:] = self.uh_n
self.uh_n[:] = self.uh_np1
if n % save_step == 0: # save every save_step timestep
plotdata[n] = self.uh_np1(xj)
return plotdata
